Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil

Brand Name : UNI-Cables

Model Number : FTTH2

Certification : ISO,TLC

Place of Origin : China

MOQ : 2000Meters

Price : US$0.05-0.17 per Meter

Supply Ability : 300km per day for two core ftth drop cable

Packaging Details : 2000 meters per Coil

Fiber Brand : YOFC

Fiber Material : Silicon dioxide

Fiber type : G652D, G657A1, G657A2

Fiber color : Blue,Orange,Green,Brown

Jacket : PVC, LSZH, PE, PU, TPU

Fiber count : 1,2,4,6

Contact Now

Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil

SM 1- 2 Cores Ftth drop optical fiber cable

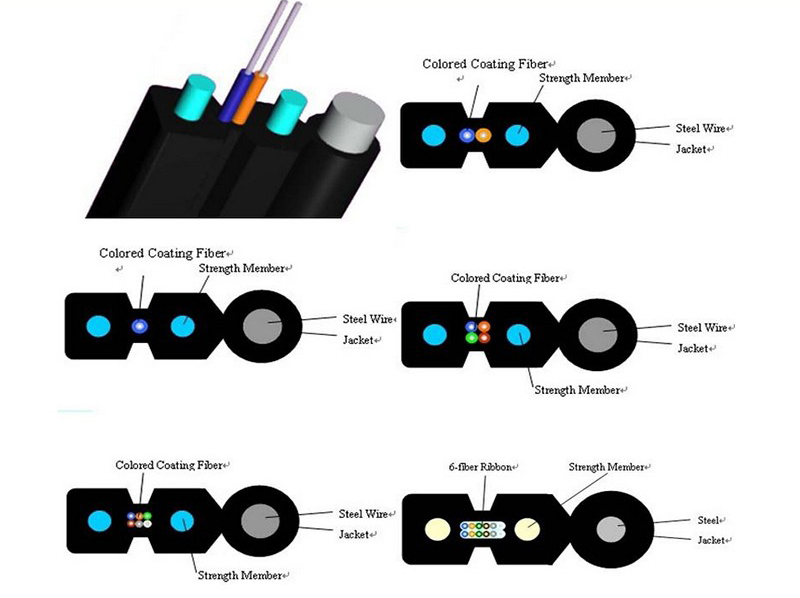

Outdoor FTTH Fiber Optic Drop cable (1 core, 2 core, 4 core)

Characteristics

Excellent stripping performance of FTTH optical fiber Cable diameter and bending radius small,It can

installation freely in narrow room

Geometrical Characteristics

Cable Type 1 2 4 6
Cable Dimension(mm) (2.0±0.2)*(5.0±0.2) (2.0±0.2)*(5.0±0.2) (2.0±0.2)*(5.5±0.2) (2.0±0.2)*(6.0±0.2)
Cable Weight (kg/km) 20 20 21 22

Mechanical Characteristics

Tensile strength(N) Long Term 60
Short Term 120
(N/100mm) Long Term 300
Short Term 1000

(CM)

Bending Radius(CM)

 Dynamic 35xD
Static 15xD

Fiber

Fiber Type(core/cladding dimension) 9/125,50/125,62.5/125

Transmission Characteristics

SM 50/125 62.5/125
1310/1550(nm) 850/1300(nm) 850/1300(nm)
Attenuation(db/km) ≤0.4/0.3 ≤3.0/1.0 ≤3.5/1.0
Minimum Bandwidth(MHz·km) ----------------------- ≥500/1000 ≥200/600

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃

Ftth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km CoilFtth 2 Core G652D Aerial Outdoor Drop Pvc Jack Frp Optical Fiber Cable 2Km Coil
