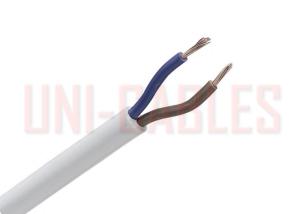

Light Duty Industrial Pvc Armoured Cable , White Black Copper Armoured Cable

  • 1
  • 2

Brand Name : UNI-CABLES

Model Number : 2182Y

Certification : CCC,ISO9001

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Depends on Quantity

Supply Ability : 10000 Rolls per Week

Packaging Details : 100 Meters per Roll

Voltage Rating (Uo/U) : 300/300V

Temperature Rating : +5°C to +70°C

Minimum Bending Radius : 6x overall diameter

Core Identification : 2 core: Blue Brown 3 core: Blue Brown Green/Yellow

Conductor : Class 5 flexible copper conductor

Sheath Colour : White Black

Insulation : PVC (Polyvinyl Chloride)

Sheath : PVC (Polyvinyl Chloride)

Contact Now

BS EN 50525-2-11 Standard PVC Electrical Cable Type 218-Y Flexible Cable

Light Duty Industrial Pvc Armoured Cable , White Black Copper Armoured Cable

APPLICATION

Light duty cable for use in domestic premises, kitchens and

offices. For use with light portable appliances such as radios, table lamps and office equipment.

CONSTRUCTION

Conductor

Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)

Insulation

PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363

Sheath

PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363

CABLE STANDARDS

BS EN 50525-2-11 (previously BS 6500, CENELEC HD21.5),

VDE 281, BS EN/IEC 60332-1-2

DIMENSIONS

UNIQUE PART NO. NO. OF CORES NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
mm² mm mm mm kg/km
UNRVV2X0.5 2 0.5 0.5 0.6 5.0 37
UNRVV2X0.75 2 0.75 0.5 0.6 5.5 46
UNRVV3X0.5 3 0.5 0.5 0.6 5.3 44
UNRVV3X0.75 3 0.75 0.5 0.6 5.8 55
UNRVV4X0.5 4 0.5 0.5 0.6 5.8 54

Colour Codes

COLOUR Black White
CODE BK WH

CONDUCTORS

Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM DIAMETER OF WIRES IN CONDUCTOR
mm		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
0.5 0.21 39
0.75 0.21 26

ELECTRICAL CHARACTERISTICS

Current Carrying Capacity and Mass Supportable

NOMINAL CROSS SECTIONAL AREA
mm²		 CURRENT CARRYING CAPACITY MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD
kg
Single-Phase AC
Amps		 Three-Phase AC
Amps
0.5 3 3 2
0.75 6 6 3

Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²		 DC OR SINGLE-PHASE AC
mV/A/m		 THREE-PHASE AC
mV/A/m
0.5 93 80
0.75 62 54
