Light Blue PVC Tri Rated Wire , Rectifier Equipment Flame Retardant Cable

Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Light Blue PVC Tri Rated Wire , Rectifier Equipment Flame Retardant Cable

Brand Name : UNI-CABLES

Model Number : Tri-Rated

Certification : CCC,ISO9001,UL1015

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Depends on Quantity

Supply Ability : 10000 Rolls per Week

Packaging Details : 100 Meters per Roll

Conductor : Class 5 flexible copper conductor

Insulation : PVC (Polyvinyl Chloride)

Contact Now

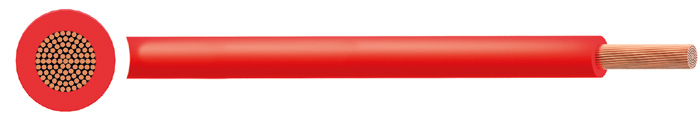

Tri-Rated Wire PVC Electrical Cable H05V2-K / H07V2-K / BS 6231 UL1015

Light Blue PVC Tri Rated Wire , Rectifier Equipment Flame Retardant Cable

APPLICATION

High temperature, flame retardant cable designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. Tri-rated cable is sometimes referred to as BS 6231 cable, H07V2-K or panel wire.

CABLE STANDARDS

BS EN 50525-2-31* BS 6231 Type CK, UL Subj.758,
CSA C22.2 No. 210 (HD 21.7 S2) #LL246095,
BS EN/IEC 60332, BS EN 60228

CHARACTERISTICS

Voltage Rating (Uo/U)
UL, CSA: 600/1000V
BS 6231: 600/1000V
BS EN 50525-2-31: 300/500V, 450/750V
Temperature Rating
UL, CSA: +105°C
BS 6231: +90°C
Minimum: -15°C
Minimum Bending Radius
6 x overall diameter
Sheath Colour
Red Black Blue Light Blue Dark Blue Yellow
Green/Yellow Grey Brown Orange White Violet
Green Pink

DIMENSIONS

NO. OF CORES NOMINAL CROSS SECTIONAL AREA APPROXIMATE AWG NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
mm² mm mm kg/km
1 0.5 21 0.8 2.7 11
1 0.75 19 0.8 2.85 15
1 1 18 0.8 3 18
1 1.5 16 0.8 3.3 23
1 2.5 14 0.8 3.75 35
1 4 12 0.8 4.35 48
1 6 10 0.8 4.85 69
1 10 8 1 6.3 117
1 16 6 1 8.1 191
1 25 4 1.2 9.4 281
1 35 2 1.2 10.9 389
1 50 1 1.4 13.1 560
1 70 2/0 1.4 15.1 774
1 95 3/0 1.6 16.1 991
1 120 4/0 1.6 17.9 1231
1 150 250 MCM 1.8 20.2 1534
1 185 350 MCM 2 22.85 1878
1 240 450 MCM 2.2 24.4 2381

Colour Codes

COLOUR Black Green Blue Light Blue Dark Blue Grey Green/ Yellow Orange Red Pink Yellow Violet Brown White
CODE BK GN BL LTBL DKBL GR GY OR RD PK YW VI BR WH

CONDUCTORS
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS
SECTIONAL AREA
MAXIMUM DIAMETER OF WIRES
IN CONDUCTOR
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
mm² mm Plain Wires
ohms/km
0.5 0.21 39
0.75 0.21 26
1 0.21 19.5
1.5 0.26 13.3
2.5 0.26 7.98
4 0.31 4.95
6 0.31 3.3
10 0.41 1.91
16 0.41 1.21
25 0.41 0.78
35 0.41 0.554
50 0.41 0.386
70 0.51 0.272
95 0.51 0.206
120 0.51 0.161
150 0.51 0.129
185 0.51 0.106
240 0.51 0.0801

ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²
CURRENT RATING (PEAK)
Amps
VOLTAGE DROP
mV/A/m
0.5 11 46
0.75 14 31
1 17 22
1.5 21 15
2.5 30 9.1
4 41 5.7
6 53 3.8
10 75 2.2
16 100 1.4
25 136 0.89
35 167 0.64
50 204 0.45
70 259 0.32
95 321 0.24
120 374 0.19
150 429 0.16
185 496 0.13
240 595 0.1
