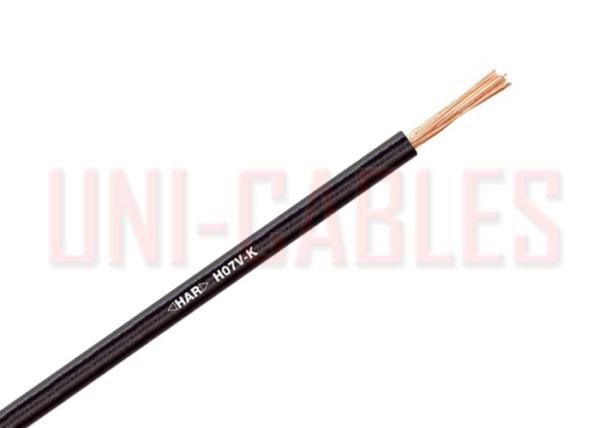

H07V-K PVC Electrical Cable 450/750V Copper Wire for Internal Wiring
Application
H07V-K is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications.
Standards
HRN HD 21.3 S3
IEC 60227-3
DIN VDE 0281 part 3
Construction
Conductor:bare copper conductor, fine wired stranded, class 5. acc. to IEC 60228/HD383/DIN VDE 0295
Insulation:PVC compound TI1 acc. to IEC 60227-3 / HD 21.3 S3 / DIN VDE 00281 part 3
Possible insulation colours:
Technical data
Temperature range:
During installation: +5 °C up to+70 °C
Fixed installed: -30 °C up to+70 °C
At short circuit of max. 5 s.:up to 160 °C
Ambient temperature at storage:up to 40 °C
Nominal voltage: Uο/U = 450/750 V
Test voltage: 2500 V
Minimal inner bending radius:
4D for D < 8 mm
5D for 8 - 12mm
6D for D > 12 mm
Behaviour in fire: IEC 60332-1
| Dimensions – conductor cross-section |
Construction of individual conductor |
External diameter |
Insulation thickness |
Conductor resistance at 20 °C |
Specific. el. resistance of insulation at 70°C |
Cu weight |
Cable weight |
Packing* |
| |
nominal |
min-max. |
nominal |
max |
min. |
|
approx. |
|
| mm² |
n x mm |
mm |
mm |
Ω/km |
MΩkm |
kg/km |
kg/km |
|
| 1,5 |
30 x 0,25 |
2,8 - 03,4 |
0,7 |
13,3 |
0,0100 |
14,4 |
20 |
c.100, c.200 |
| 2,5 |
50 x 0,25 |
3,4 - 04,1 |
0,8 |
7,98 |
0,0095 |
24,0 |
32 |
c.100 |
| 4 |
56 x 0,30 |
3,9 - 04,8 |
0,8 |
4,95 |
0,0078 |
38,4 |
46 |
c.100 |
| 6 |
84 x 0,30 |
4,4 - 05,3 |
0,8 |
3,30 |
0,0068 |
57,6 |
65 |
c.100 |
| 10 |
80 x 0,40 |
5,7 - 06,8 |
1,0 |
1,91 |
0,0065 |
96,0 |
115 |
c.100 |
| 16 |
128 x 0,40 |
6,7 - 08,1 |
1,0 |
1,21 |
0,0053 |
153,6 |
170 |
c.100 |
| 25 |
200 x 0,40 |
8,4 - 10,2 |
1,2 |
0,780 |
0,0050 |
240 |
260 |
CUT |
| 35 |
280 x 0,40 |
9,7 - 11,7 |
1,2 |
0,554 |
0,0043 |
336 |
360 |
CUT |
| 50 |
400 x 0,40 |
11,5 - 13,9 |
1,4 |
0,386 |
0,0042 |
480 |
515 |
CUT |
| 70 |
356 x 0,50 |
13,2 - 16,0 |
1,4 |
0,272 |
0,0036 |
672 |
710 |
CUT |
| 95 |
485 x 0,50 |
15,1 - 18,2 |
1,6 |
0,206 |
0,0036 |
912 |
940 |
CUT |
| 120 |
614 x 0,50 |
16,7 - 20,2 |
1,6 |
0,161 |
0,0032 |
1152 |
1180 |
CUT |
| 150 |
765 x 0,50 |
18,6 - 22,5 |
1,8 |
0,129 |
0,0032 |
1440 |
1600 |
CUT |
| 185 |
944 x 0,50 |
20,6 - 24,9 |
2,0 |
0,106 |
0,0032 |
1776 |
2100 |
CUT |
| 240 |
1225 x 0,50 |
23,5 - 28,4 |
2,2 |
0,0801 |
0,0031 |
2304 |
3015 |
CUT |
*)Packing: c.100 = coil 100 m, c.200 = coil 200 m CUT= cable in different lengths on drum or reel, possible cutting at required length
