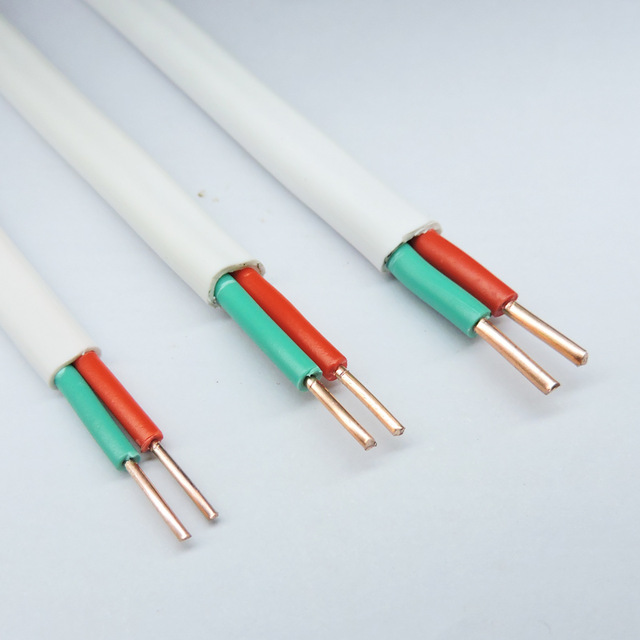

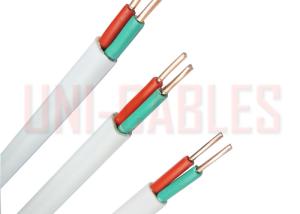

Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable

Brand Name : UNI-CABLES

Model Number : VVF

Certification : CCC,ISO9001,JIS

Place of Origin : CHINA

MOQ : 1000 Meters

Price : Negotiable

Supply Ability : 10000 per Week

Delivery Time : 10 working days

Packaging Details : 100 meters per roll, or 1000 meters per reel

Voltage Rating : 450/750V

Temperature Rating : 90°C

Minimum Bending Radius : 4 X cable OD

Conductor : Class 2 copper conductor

Insulation : PVC

Sheath : PVC

Contact Now

Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable

Application

VVF cables ared used for exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Reference Standard:

TIS 11-2531

Cable Construction:

Conductor: Solid and stranded annealed copper,

Sizes: 1 mm2 up to 35 mm2

Insulation: Polyvinyl chloride (PVC)
Color : Light grey, Black

Sheath: Polyvinyl chloride (PVC), white color

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 750 volts
Test voltage 2500 volts


Cable Parameter

NO. OF CORES CONDUCTOR INSULATION THICKNESS SHEATH THICKNESS OVERALL DIAMETER MAXIMUM
CONTINUOUS CURRENT RATING IN FREE AIR		 MIN. INSULATION RESISTANCE (AT20OC) CABLE WEIGHT
SIZE NO. & DIA. OF WIRES
LOWER LIMIT UPPER LIMIT
MM2 NO./MM MM MM MM MM A MOHM/KM KG/KM
2 1 1/1.13 0.8 1.4 5.2 x 8.0 6.4 x 9.4 13 0.0141 75
2 1 7/0.40 0.8 1.4 5.4 x 8.0 6.6 x 9.8 13 0.0135 75
2 1.5 1/1.38 0.8 1.4 5.6 x 8.4 6.6 x 10.0 17 0.0123 90
2 1.5 7/0.50 0.8 1.4 5.6 x 8.6 7.0 x 10.5 17 0.0116 90
2 2.5 1/1.78 0.8 1.4 5.8 x 9.2 7.2 x 11.0 22 0.0102 110
2 2.5 7/0.67 0.8 1.4 6.2 x 9.6 7.4 x 11.5 22 0.0093 110
2 4 1/2.25 0.9 1.4 6.6 x 10.5 7.8 x 12.5 30 0.0094 160
2 4 7/0.85 0.9 1.4 6.8 x 11.0 8.2 x 13.0 30 0.0085 160
2 6 7/1.04 0.9 1.4 7.4 x 12.0 8.8 x 14.5 37 0.0073 220
2 10 7/1.35 1.1 1.5 8.8 x 15.0 10.5 x 17.0 52 0.0069 340
2 16 7/1.70 1.1 1.5 9.8 x 17.0 11.5 x 19.5 69 0.0057 480
2 25 7/2.14 1.3 1.6 11.5 x 20.5 13.5 x 23.5 91 0.0054 720
2 35 19/1.53 1.3 1.7 13.0 x 23.0 15.0 x 26.5 112 0.0047 940

Type VVF JIS Standard PVC Insulated Solid Conductor Fixed Wiring Cable
