Double Insulated 450 / 750V PVC Electrical Cable , Australia Standard Single Core SDI Cables

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Double Insulated 450 / 750V PVC Electrical Cable , Australia Standard Single Core SDI Cables

Brand Name : UNI-CABLES

Model Number : SDI

Certification : CCC,ISO9001,SAA

Place of Origin : CHINA

MOQ : 1000 Meters

Price : Negotiable

Supply Ability : 10000m per Week

Delivery Time : 10 working days

Packaging Details : 100 meters per roll, or 1000 meters per reel

Voltage Rating : 450/750

Test Voltage : 3kV

Minimum Bending Radius : 4 x overall diameter

Conductor : Class 2 copper

Insulation : PVC V90

Sheath : PVC 5V90

Contact Now

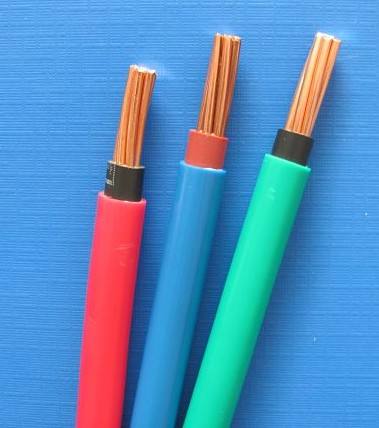

Australia Standard Single Core SDI Cables Double Insulated PVC Wire 450/750V

Application

For mains, submains and subcircuits unenclosed, enclosed in conduit, buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Cable Standards

AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

Cable Construction

Conductor: Plain annealed copper.
Insulation: Polyvinylchloride compound PVC V-90.
Insulation colour: Red, Black
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request

Cable Parameter

Product code Conductor Cable Min. installed bending radius mm
Nominal C.S.A.
mm²		 Number and diameter of wires No/mm Nominal diameter mm Nominal insulation thickness mm Overall diameter Approx. mass kg/100 m

Minimum

mm

Maximum

mm
1.0SSDI 1.0* 1/1.13 1.13 0.6 3.9 4.1 2.9 15
1.5SDI 1.5 7/0.50 1.5 0.6 4.3 4.5 3.5 20
2.5SSDI 2.5* 1/1.78 1.78 0.7 4.8 5.0 4.9 20
2.5SDI 2.5 7/0.67 2 0.7 5 5.2 5.1 20
4SDI 4 7/0.85 2.6 0.8 6.0 6.2 7.4 25
6SDI 6 7/1.04 3.1 0.8 6.5 6.7 10 25
10SDI 10 7/1.35 4.1 1.0 7.8 8.2 15 35
16SDI 16 7/1.70 5.1 1 9.1 9.4 22 40

Double Insulated 450 / 750V PVC Electrical Cable , Australia Standard Single Core SDI Cables


Product Tags:

pvc insulated cables



insulated electrical wirepvc


Wholesale Double Insulated 450 / 750V PVC Electrical Cable , Australia Standard Single Core SDI Cables from china suppliers

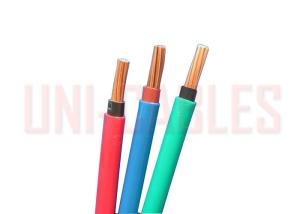

Double Insulated 450 / 750V PVC Electrical Cable , Australia Standard Single Core SDI Cables Images
