BS 6004 624 Y Flat Twin and Earth Cable Copper Conductor With Bare Earth Wire

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

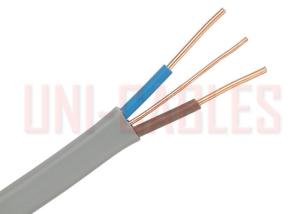

BS 6004 624 Y Flat Twin and Earth Cable Copper Conductor With Bare Earth Wire

Brand Name : UNI-CABLES

Model Number : 624Y

Certification : CCC,ISO9001

Place of Origin : CHINA

MOQ : 100 Rolls

Price : USD $0.35-1.2 per Meter

Supply Ability : 140000 per week

Packaging Details : 100 meters per roll

Conductor : Copper conductor according to BS EN 60228

1mm² to 2.5mm² : Class 1 solid conductor

4mm² to 16mm² : Class 2 stranded conductor

Circuit Protection Conductor (Earth) : 4mm² to 16mm²: Class 2 stranded copper conductor

Insulation : PVC (Polyvinyl Chloride)

Sheath : PVC (Polyvinyl Chloride)

Voltage Rating (Uo/U) : 300/500V

Temperature Rating : -5°C to +70°C

Short Circuit : +160°C

Minimum Bending Radius : Fixed: 6 x overall diameter

Core Identification : Brown Blue

Sheath Colour : Grey

Contact Now

BS 6004 624-Y Twin and Earth PVC Electric Cable Flat Cable With Bare Earth Wire

APPLICATION
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue.


Suitable for laying in conduit or trunking where mechanical protection is required.

DIMENSIONS

UNI-CABLES
PART NO.		 NO. OF CORES NOMINAL CROSS SECTIONAL AREA CONDUCTOR CLASS CROSS SECTIONAL AREA OF CIRCUIT PROTECTIVE CONDUCTOR NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIMENSIONS NOMINAL WEIGHT
kg/km
mm² mm² mm mm mm
UNI2010GR 2 1 1 1 0.6 0.9 4.35 x 7.95 68
UNI2015GR 2 1.5 1 1 0.7 0.9 4.85 x 8.9 87
UNI2025GR 2 2.5 1 1.5 0.8 1 5.65 x 10.65 120
UNI2040GR 2 4 2 1.5 0.8 1 6.3 x 11.95 172
UNI2060GR 2 6 2 2.5 0.8 1.1 7.1 x 13.7 235
UNI210GR 2 10 2 4* 1 1.2 8.7 x 17.25 373
UNI216GR 2 16 2 6* 1 1.3 9.85 x 20 530
UNI3010GR 3 1 1 1 06 0.9 4.35 x 9.8 91
UNI3015GR 3 1.5 1 1 0.7 0.9 4.85 x 11.2 115

*Class 2 conductors only

CONDUCTORS
Class 1 Solid Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
1 18.1
1.5 12.1
2.5 7.41

Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR
AT 20ºC
mm² Circular Annealed Copper Conductor
Plain Wires
ohms/km
4 7 4.61
6 7 3.08
10 7 1.83
16 7 1.15

ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Voltage Drop

NOMINAL CROSS
SECTIONAL AREA
mm²		 REFERENCE METHOD A*
(IN CONDUIT IN WALL)
Amps		 REFERENCE METHOD C*
(CLIPPED DIRECT)
Amps		 VOLTAGE DROP
mv/A/m
1 11.5 16 44
1.5 14.5 20 29
2.5 20 27 18
4 26 37 11
6 32 47 7.3
10 44 64 4.4
16 57 85 2.8

The above table is in accordance with 4D5 of the 17th Edition of IEE Wiring Regulations.
Note
A* For full installation method refer to Table 4A2 Installation Method 2 but for flat twin and earth cable of the 17th Edition of IEE Wiring Regulations.
C* For full installation method refer to Table 4A2 Installation Method 20 but for flat twin and earth cable of the 17th Edition of IEE Wiring Regulations.
