Electric Plants PVC Insulated Power Cable , NAYY J Aluminum Conductor Cable

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

Electric Plants PVC Insulated Power Cable , NAYY J Aluminum Conductor Cable

Brand Name : UNI-CABLES

Model Number : NAYY-J

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100M

Price : Negotiable

Supply Ability : 7000 Meters per Week

Delivery Time : 15-20 working days

Packaging Details : 200M in Steel Reels

UV-resistant : Yes

Conductor material : Aluminium

Outdoor use : Yes

Type : Low Voltage

Operating Temperature : -5 - +70 °C

Bending radius : 10 x DA

Contact Now

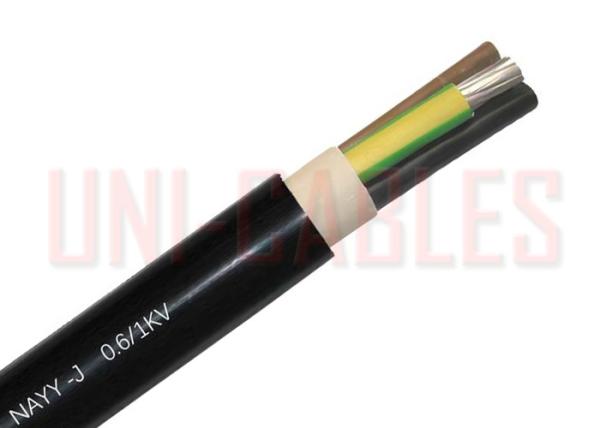

NAYY-J / -O Low Voltage Cable Aluminum Conductor PVC Insulated Power Cable

APPLICATION

Distribution power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in industrial plants, metropolitan networks and in other electric plants.

CONSTRUCTION

Conductor of solid aluminium wires, round or sector shape

- PVC insulation

- wrapped thermoplastic tapes filler

- PVC sheath

Standard VDE 0276-603
Direct burial yes
VDE yes
CPR-performance Eca
Conductor material aluminium
Insulation PVC DIV 4
Sheathing material PVC DMV 5
Colour outer sheath black
Flame-retardant VDE 0482-332-1-2/IEC 60332-1-2
UV-resistant yes
For outdoor use yes
Maximum permitted conductor temperature 70 °C
Permitted outer cable temperature, fixed 70 °C
Permitted outer cable temperature, in motion/during installation -5 - +70 °C


DIMENSIONS

Product Tags:

lv power cable



low voltage armoured cable


Number of cores x conductor cross-section Construction External diameter Insulation thickness Sheath thickness Conductor resistance at 20 °C Short circuit current 1s Cable weight
min - max. nom. nom. max. nom.
N x mm² mm mm mm Ω/km kA kg/km
1 x 50 RM 14 - 17 1,4 1,8 0,641 3,80 298
1 x 70 RM 16 - 19 1,4 1,8 0,443 5,32 383
1 x 95 RM 18 - 21 1,6 1,8 0,320 7,22 490
1 x 120 RM 19 - 22 1,6 1,8 0,253 9,12 575
1 x 150 RM 21 - 25 1,8 1,8 0,206 11,40 695
1 x 185 RM 23 - 27 2,0 1,8 0,164 14,10 845
1 x 240 RM 26 - 30 2,2 1,8 0,125 18,20 1100
1 x 300 RM 28 - 32 2,4 1,9 0,100 22,80 1379
1 x 400 RM 32 - 37 2,6 2,0 0,0778 27,20 1615
1 x 500 RM 35 - 40 2,8 2,1 0,0605 34,00 2015
1 x 630 RM 41 - 45 2,8 2,2 0,0469 42,84 2472
4 x 16 RE 21 - 25 1,0 1,8 1,91 1,21 750
4 x 25 RE, RM 25 - 32 1,2 1,8 1,200 1,90 950
4 x 35 RE, SM 27 - 34 1,2 1,8 0,868 2,66 1141
4 x 50 SE, SM 29 - 36 1,4 1,9 0,641 3,80 1242
4 x 70 SE, SM 33 - 40 1,4 2,1 0,443 5,32 1631
4 x 95 SE, RM 38 - 45 1,6 2,2 0,320 7,22 2063
4 x 120 SE, SM 41 - 49 1,6 2,4 0,253 9,12 2538
4 x 150 SE, SM 46 - 54 1,8 2,5 0,206 11,40 3090
4 x 185 SE, SM 51 - 59 2,0 2,7 0,164 14,10 3838
4 x 240 SE, SM 57 - 65 2,2 2,9 0,125 18,20 4863
4 x 16+2,5 RM+RE 21,6 1,0 1,8 1,91 1,21 781
4 x 25+2,5 RM+RE 28 1,2 1,8 1,200 1,90 981
4 x 35+2,5 SM+RE 31 1,2 1,8 0,868 2,66 1172
4 x 50+2,5 SM+RE 35 1,4 1,9 0,641 3,80 1273
4 x 70+2,5 SM+RE 38 1,4 2,1 0,443 5,32 1662
4 x 95+2,5 SM+RE 42 1,6 2,2 0,320 7,22 2094
4 x 120+2,5 SM+RE 46 1,6 2,4 0,253 9,12 2569
4 x 150+2,5 SM+RE 49 1,8 2,5 0,206 11,40 3121
4 x 185+2,5 SM+RE 54 2,0
