NAYCWY UV Resistant Outdoor Low Voltage Cable Al Conductor Industrial For Plants

Distribution power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where there is a danger of possible mechanical damages, but where the cable is not exposed either to systematic mechanical stress or heavier tensile strain.

Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants.

Concentric conductor can be used as neutral, protective or earth connection, and in situations where the insulation might be roughly damaged by some metal object, it acts as protection against contact voltage. Corrugated, concentric conductor construction enables establishing of several cable connections without cutting of conductor.

CONSTRUCTION

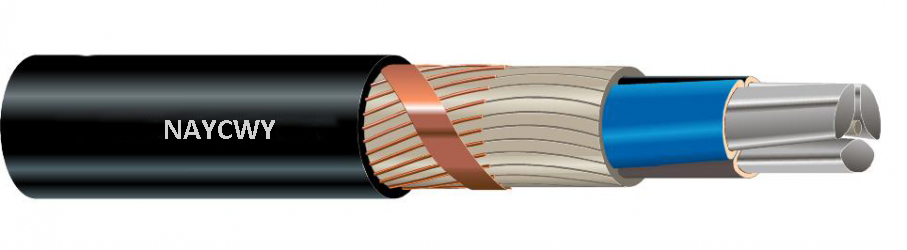

1 | Aluminium conductor, round stranded (RM), resp. sector-shaped stranded (SM)

2 | Core insulation (PVC)

3 | Inner covering (EPDM)

4 | Concentric screen (bare copper wires applied with changing direction of lay) and counter helix (copper tape)

5 | Sheath (PVC black, UV-resistant)

Electrical characteristics

Standard: DIN VDE 0276-603 (HD 603)

Rated voltage: 0.6/1 kV

Test voltage: 4 kV/50 Hz

Temperature range:

laying temperature: min. –5 °C

operating temperature: –50 °C up to +70 °C

conductor temperature: max. +70 °C

short-circuit temperature: max. +160 °C/5 s

Bending radius (min.): 15 x ∅ of cable (single core)

12 x ∅ of cable (multi-core)

Core identifi cation: HD 308 S2

Fire properties: fl ame retardant: EN 60332-1-2
