IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable

Product Categories
Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.
Contact Now

IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable

Brand Name : UNI-CABLES

Model Number : IS 14255 ABC

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1km

Price : Negotiable

Supply Ability : 1000000 per week

Delivery Time : 15-20 Working Days

Packaging Details : 2km per reel

Conductor : Aluminum 1350-H19

Insulation : XLPE

Voltage : 600V

Temperature Rating : 0°C to 75°C

Color Identification : Ribs

Cores : 1-6

Contact Now

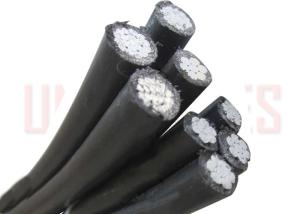

IS 14255 India Standard Aerial Bundled Cable with AAAC Neutral and Street Light

APPLICATION

The Areial Bundled Cable are designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminum phase conductors are helically wound over it. Street light wire are available according to requirement.

The main advantage of aerial bundled cables included

1.Easy of erection and stringing.

2.Practically no tree-trimming required

3.Less maintenance.

Construction

Phase Conductor H68 condition aluminium conductor, round stranded compressed.
Neutral or Messenger Conductor Alloy aluminium conductor, round stranded compressed.
Street Lighting Conductor H68 condition aluminium conductor, round stranded compressed.
Insulation PE.
Assembly The cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.

Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -20
Operating temperature °C -30 +80
Conductor temperature °C max. +80
Short-circuit temperature °C/s max. +130 /5
Bending radius (min.) mm 18 × O of cable

DIMENSIONS

Nom. Area Max. D.C Conductor Resistance At
20 Deg. C		 Nom.
Thickness Of
Insulation
XLPE/PF		 Nom. Area Max. D.C
Conductor
Resistance At
20 Deg. C		 Nom.
Thickness Of
Insulation
XLPE/PE		 Nom. Area Max. D.C
Conductor
Resistance At
20 Deg. C		 Min.
Breaking
Load
Sqmm Ohm/Km mm Sqmm Ohm/Km mm Sqmm Ohm/Km KN
16 1.91 1.2 16 1.91 1.2 25 1.38 7
25 1.2 1.2 16 1.91 1.2 25 1.38 7
35 0.868 1.2 16 1.91 1.2 25 1.38 7
50 0.641 1.5 16 1.91 1.2 35 0.986 9.8
70 0.443 1.5 16 1.91 1.2 50 0.689 14
95 0.32 1.5 16 1.91 1.2 70 0.492 19.7


IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable


Product Tags:

raluminum aerial cable



aerial power cable


Wholesale IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable from china suppliers

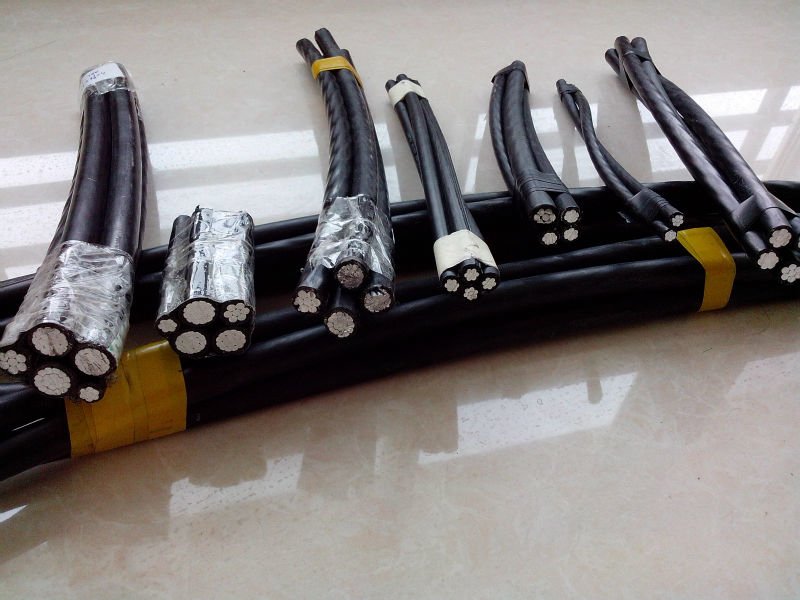

IS 14255 India Standard Aerial Bundled Cable , Street Light Neutral AAAC Cable Images
